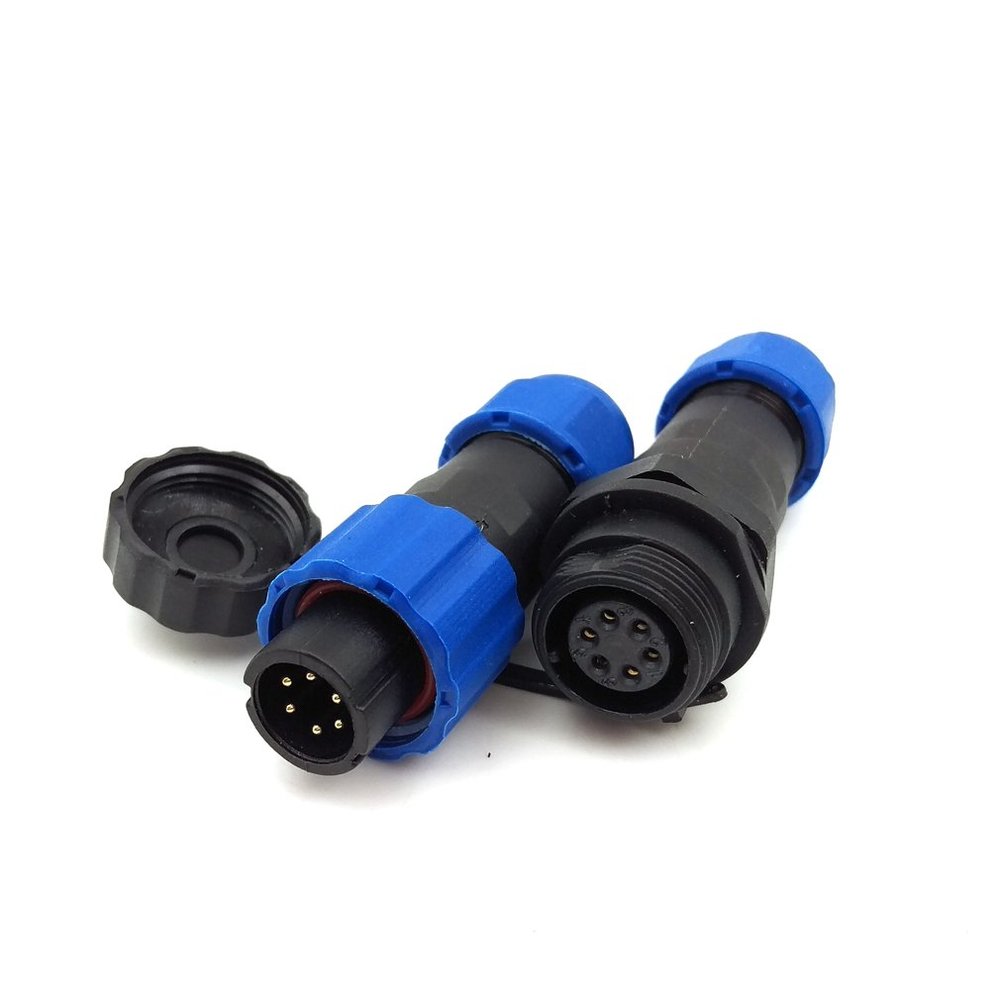

SD13 6pin Waterproof Power Connector, IP68 LED 6-pin connectors, Power Charger Plug Socket, Mechanical Cable connectors Plug(Male)-Socket(Female) Connector Set (6PIN, Direct Plug)

Description

• SD13 6pin IP68 waterproof power cable connector in 13mm panel cut.
• Pin number available: 1pin/ 2pin/ 3pin/ 4pin/ 5pin/ 6pin/ 7pin waterproof connector
• Direct plug, plug-male/ socket-female, 5A 380V industrial standard connector,
• Contact diameter: 1mm *6, Cable diameter: 4-7mm; Total Size: 6.5 x 1.8cm / 2.6" x 0.72" (L*)
• Professional and trusted waterproof power connector supplier

Specifications
Material: Nylon
Welded pinhole: beryllium gold plated style
Sealing ring: silicone
Gender: male female
Connection: screw connection
1. Operating temperature: -45 C ~ 85 C
2. Relative humidity: 90% ~ 95% (40 2 C)
3. Salt spray: 5% NaC1 mist in 48h
4. Sealing: IP68
5. Applicable cable diameter: 4.0 ~ 6.5mm
6. Mechanical life: 500 times
7. Insulation resistance: 500m under normal condition
8. Working current: 2.8 Contact: 25A, 1.8 Contact: 10A, 1 Contact: 5A
9. Contact Resistance: 2 Contacts 2m, 1 Contact: 5m
10. Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC)/ Test Voltage: 1500V (AC)
